VAR 11 | Optimum

Colour version:Sparkasse (red)Volksbank (blue)

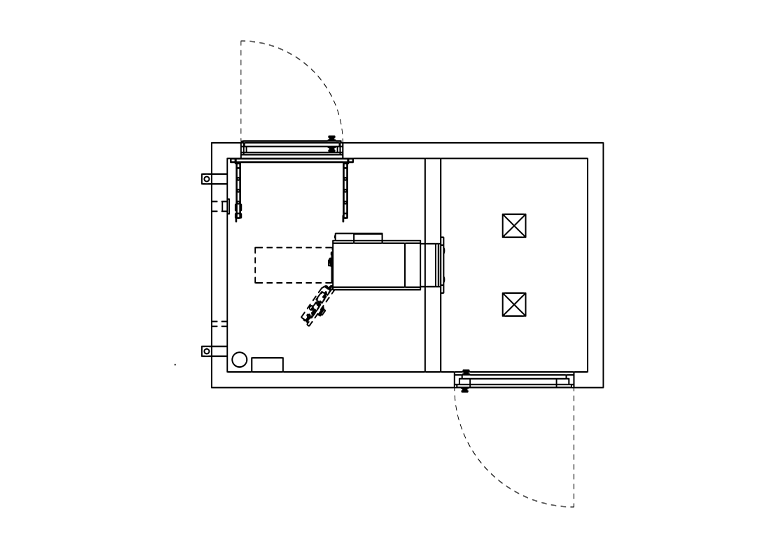

Technical drawing

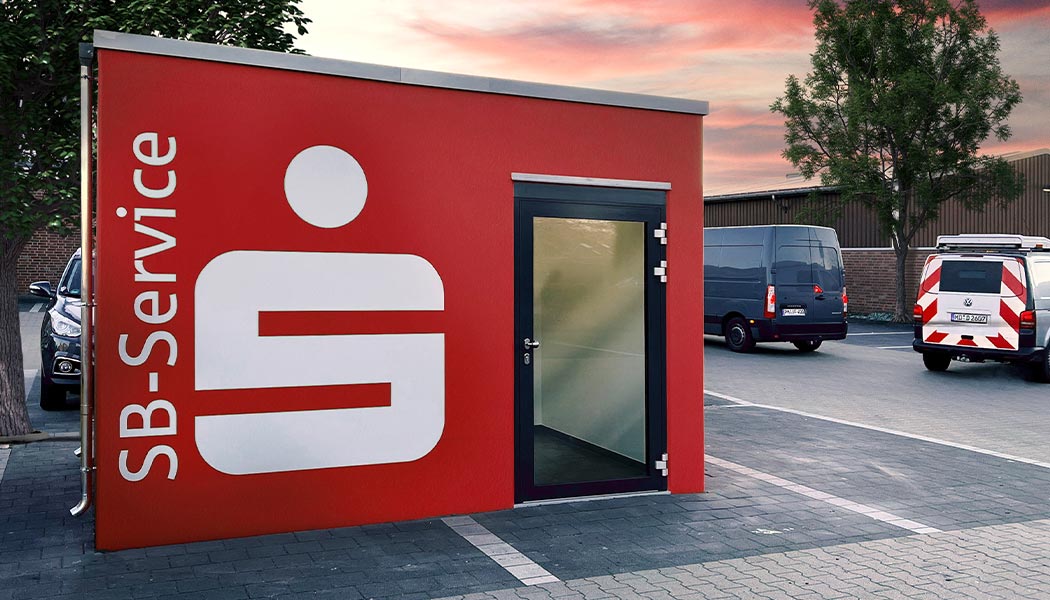

Installed pavilions

‹›

Standard equipment

• Double vault door: outer steel door RC2
• + stainless steel grille door based on RC4
• + safety rope for the rear door
• Protection against entry and reaching behind the ATM and grille door
• Swing door including motor lock
• Standard foyer interior fit-out
• Stainless steel skirting, all round
• Electrical installation / sub-distribution
• Base coat (RAL 9010 pure white)

Dimensions and weight

• Overall height: 3.00 m
• Overall length: 4.00 m
• Overall width: 2.50 m
• Footprint: 10.00 sqm
• Weight: 25.0 t

Optional extras

• ATM / self-service terminal / account statement printer fitted at the factory
• Integration of an additional terminal (niche)
• Exterior design A: colour plus logos and lettering
• Exterior design B: colour only
• Exterior design C: fully to customer specification
• Backlit exterior fascia (LED)
• Additional exterior lighting to customer specification

All prices and optional extras are listed in our portfolio. Request the portfolio
